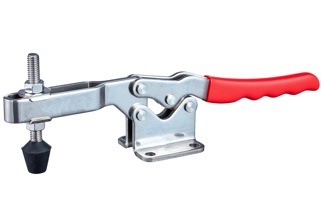

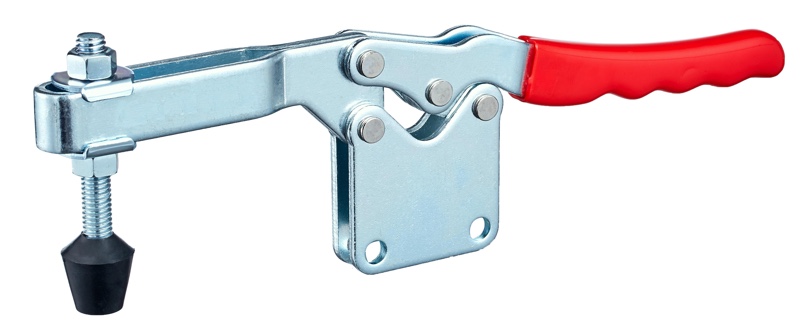

DST-20235 Horizontal acting toggle clamp with horizontal mounting base 3300N
Horizontal acting toggle clamp with horizontal mounting base :
- Standard clamping element
- Adjustable U-Bar
- Bar Opens : 85°
- Handle Opens : 50°
- with clamping screw, washer and nut element
- Holding Capacity : 3330N
- Weight : 700g
- Material: galvanic, zinc-plated high quality steel
- corrosion-resistant
- Hand grips designed for high user comfort
- available in Stainless Steel (DST-20235-DSS)
- e.g. suitable for 235-U, etc.
- CAD-file and Price on request !
| Modell-Nr. | DST-20235 |
|---|---|
| Holding Capacity (N) | 3330 N |
| Weight (g) | 700 g |
| Bar Opens | 85° |
| Handle Opens | 50° |
| Spindle supplied | FC-38312 |
| Price (EUR) | on request |
