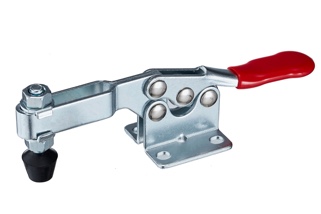

Horizontal toggle clamps with horizontal base
Horizontal acting toggle clamps with horizontal mounting base :
- Holding capacity 265N up to 3330N
- adjustable U-Bar
- Straight handle
- Bar opens 85° - 90°
- Handle opens 50° - 80°
- with clamping screw, washer and nut element
- Item group 112.000
- Material: galvanized, forged quality steel
- ergonomical plastic handle
- CAD-Data and prices on request !
Note :

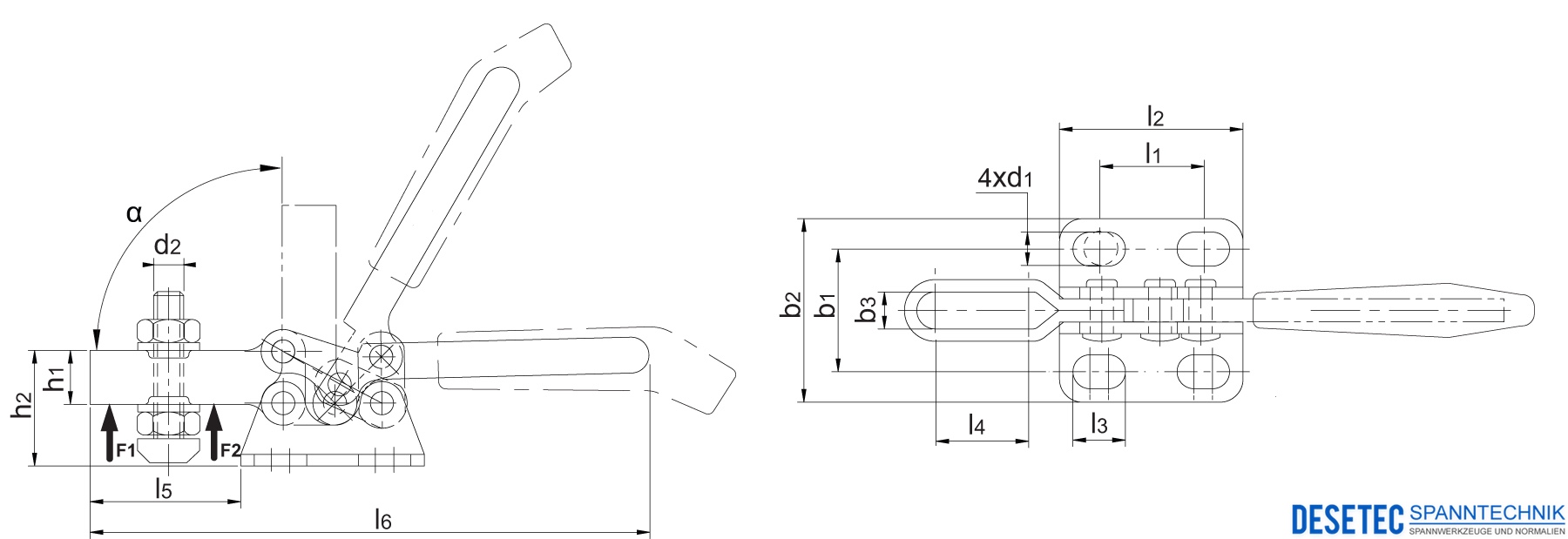

| Art.-Nr. | b1 | l1 | b2 | l2 | l3 | b3 | h1 | h2 | l4 | l5 | l6 | α1 | F(N) | d2 | Weight (g) | Price |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 112.000 (201) |
15.9 | 13.5 | 23.8 | 23.8 | 6.8 | 4.8 | 7 | 15 | 11 | 19.6 | 77 | 90° | 265 | M4x25 | 35 | on request |
| 112.001 | 22 | 27 | 36 | 37 | 6 | 7.4 | 12.7 | 38.1 | 35 | 56.2 | 142 | 85° | 900 | M6x44 | 130 | on request |
| 112.002 (225-D) |
22.2 | 23.1 | 35 | 38 | 9 | 8.7 | 12.7 | 47.6 | 44 | 70 | 168 | 90° | 2270 | M8x63 | 265 | on request |
| 112.003 (20235) |
41.3 | 41.3 | 57.2 | 57.1 | 11 | 19 | 63.5 | 78 | 107 | 292 | 85° | 3330 | M10x85 | 700 | on request |
