M10L Vertical toggle clamp with horizontal base and solid clamping arm
Vertical toggle clamp with horizontal base
- Galvanized and zinc-plated quality steel
- Rivets of stainless steel and hardened bushings
- Bearings and bushings are greased/pre-lubricated
- Oil resistant, ergonomic red handles
- Safety mechanism with finger protection and for higher operator security
- Hardened and galvanized, quick adjustable clamping screw
- Oil- and heat resistant rubbcer cap
Note :
- CAD-files on request !

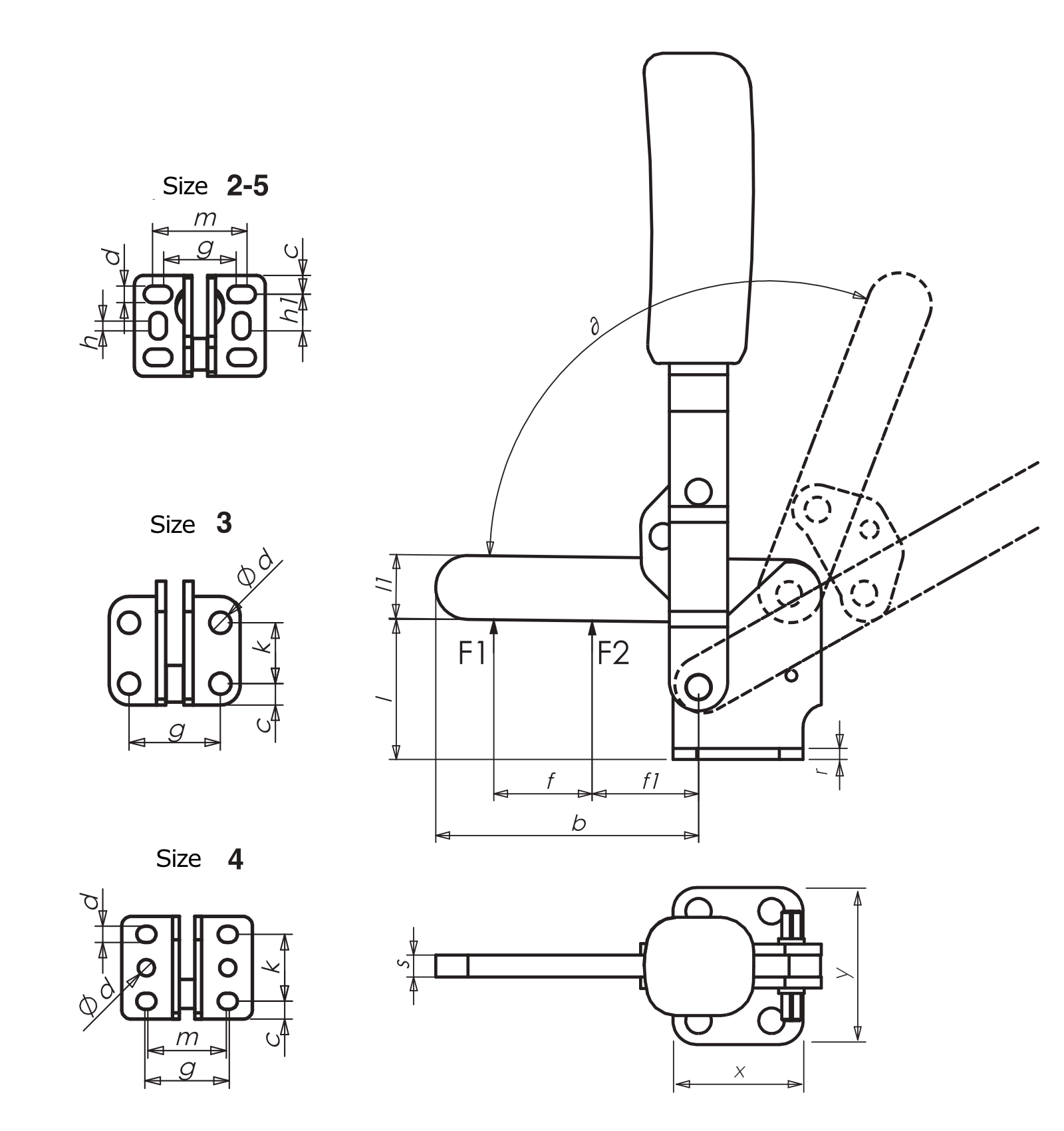

| Size | F1 ⇧ [kN] | F2 ⇧ [kN] | Total height | Total length | Clamping screw | Weight [g] | Price [EUR] | Order- No. |
|---|---|---|---|---|---|---|---|---|
| 2 | 1.0 | 1.2 | 140 | 76 | M6 x 35 | 175 | 11,90 | M10L-2 |
| 3 | 1.8 | 2.5 | 200 | 105 | M8 x 45 | 395 | 12,90 | M10L-3 |
| 4 | 2.0 | 3.0 | 230 | 140 | M8 x 65 | 680 | 20,90 | M10L-2 |
| 5 | 3.0 | 5.0 | 265 | 190 | M12 x 80 | 1325 | 28,90 | M10L-5 |
| Size | b | c | d | f | f1 | g | h | h1 | k | l | l1 | m | r | s | x | y | ∂ | Order-No. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 51 | 6 | 5.3 | 24 | 10 | 30 | 3 | 11 | 20 | 26 | 12 | 23 | 2.5 | 5 | 32 | 42 | 100° | M10L-2 |
| 3 | 72 | 7.5 | 7 | 29 | 27 | 32 | - | - | 20 | 36 | 18 | - | 3 | 6 | 35.5 | 45 | 105° | M10L-3 |
| 4 | 101 | 9.25 | 8.5 | 61 | 30 | 45 | - | 17 | 34.5 | 48 | 20 | 34 | 3.5 | 8 | 53 | 65 | 105° | M10L-4 |
| 5 | 137 | 10.5 | 8.5 | 88 | 40 | 50 | 5 | 25 | 45 | 55 | 25 | 45 | 5 | 10 | 66 | 71.5 | 115° | M10L-5 |
MS10/20 Clamping screw with rubber cap
A : with removable protective black cap ( 2 separate parts)
B : with removable protective red cap ( 2 separate parts)
C : red rubber cap and screw are one part (1 part)
B : with removable protective red cap ( 2 separate parts)
C : red rubber cap and screw are one part (1 part)
MS10/20 Clamping screw with cap
- tempered, galvanised and passivated
- with removable protective cap
- complete with washer/nut element
- also available in stainless steel
- modifications in customized length possible
| Size | MxL1 | h | L | Weight [g] |
|---|---|---|---|---|
| 0 | M4x25 | 18.5 | 31 | 7.70 |
| 1 | M5x30 | 22 | 38 | 13.80 |
| 2 | M6x35 | 25 | 43 | 19.80 |
| 3 | M8x45 | 29 | 57 | 44.20 |
| 4 | M8x65 | 47 | 77 | 63.30 |
| 5 | M12x80 | 56 | 97 | 165.40 |
MS10/22 - MS10/23 - MS10/24 Self-aligning clamping screw - for Toggle Clamps
MS10/22 : self-aligning, ribbed clamping surface
MS10/23 : self-aligning, plain clamping surface
MS10/24 : self-aligning, V-groove clamping surface
MS10/23 : self-aligning, plain clamping surface
MS10/24 : self-aligning, V-groove clamping surface
MS10/22 MS10/23 MS10/24 Self-aligning clamping screw
- tempered, galvanized and passivated
- complete with washer/nut-element
- also available in stainless steel
- modifications in customized length possible
| Größe | MxL | A | B | C |
|---|---|---|---|---|
| 2 | M6x53.3 | 53.3 | 13 | Ø16 |
| 3 | M8x64.5 | 64.5 | 17 | Ø20 |
| 4 | M10x86 | 86 | 21 | Ø26.5 |
| 5 | M12x98 | 98 | 24 | Ø30 |
MS10/30 Supporting arm - for Toggle Clamps
MS10/30 Supporting arm for toggle clamps
- Galvanized and passivated
- complete with two tempered clamping screws and fastening screw
- also available in stainless steel
| Size | Screw | Distance between screws | Length [mm] | Weight [g] |
|---|---|---|---|---|
| 1 | M5x30 | 22-72 | 85 | 65 |
| 2 | M6x35 | 28-85 | 100 | 90 |
| 3 | M8x45 | 34-100 | 120 | 200 |
| 4 | M8x65 | 40-125 | 150 | 370 |
| 5 | M8x65 | 40-125 | 150 | 370 |
| Item-No. toggle clamp |
suitable size | ||||||
| 0 | 1 | 2 | 3 | 4 | 5 | 6 | |
| M10 | - | 1 | 2 | 3 | 4 | - | 5 |
| M11 | - | 1 | 2 | 3 | 4 | - | 5 |
| M12 | - | 1 | 2 | 3 | 4 | - | 5 |
| M20 | - | 1 | 2 | 3 | 4 | 5 | - |
| M21 | - | 1 | 2 | 3 | 4 | 5 | - |
| M22 | - | - | - | 3 | - | - | - |
MS10/15 Rubber nose
MS10/15 Rubber nose
- Made of oil resistant neoprene
- to prevent damage to delicate components
- for placement on hexagon screw head
- optional available in red or black color
| Size | M | D | H | Gewicht [g] |
|---|---|---|---|---|
| 0 | M4 | 11 | 8.5 | 1 |
| 1 | M5 | 12 | 9 | 1 |
| 2 | M6 | 15 | 11.5 | 2 |
| 3 | M8 | 19 | 14 | 4 |
| 4 | M10 | 24 | 17 | 6 |
| 5 | M12 | 25 | 20 | 8 |
MS10/16 Optional Handles - for Toggle Clamps
MS10/32 Clamping arm extension
MS10/32 Clamping arm extension
- Made from lightweight aluminum
- Drilled and tapped for clamping schrews
- Easily cut to length
- Complete with fastening bolt. Without clamping screw.
- Similar to 6899 or L-200-4
| Size | B | B1 | B2 | B3 | B4 | L | L1 | L2 | L3 | L4 | L5 | L6 | M |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 12 | 6.5 | 9 | 12 | 2x45° | 127 | 110 | 35 | 48 | 15 | 75 | 10 | M5 |
| 3 | 15 | 8.5 | 12 | 15 | 2x45° | 167 | 150 | 45 | 73 | 15 | 105 | 10 | M5 |
| 4 | 17 | 9 | 16 | 20 | 2x45° | 220 | 200 | 45 | 73 | 15 | 105 | 10 | M8 |
MS10/34 Length adapter for horizonzal bridging - for Toggle clamps
MS10/34 Length adapter for toggle clamps
- Made from lightweight aluminum
- Used in conjunction with Height Adapters and Clamping Arm Adapters
- Easily cut to length-easy handling
- Supplied with mounting screw
| Size | B | B1 | B2 | B3 | B4 | ØD | ØD1 | ØD2 | L | L1 | L2 | L3 | L4 | M |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 12 | 6.5 | 9 | 12 | 2x45° | 5.5 | 10 | 6 | 95 | 70 | 15 | 48 | 6 | M5 |
| 3 | 15 | 9 | 12 | 15 | 2x45° | 5.5 | 10 | 6 | 95 | 70 | 15 | 48 | 6 | M5 |
MS10/35 Length adapter for horizonzal bridging - for Toggle clamps
MS10/35 Length adapter for toggle clamps
- Made from lightweight aluminum
- Use with clamps, length adapters, and arm adapters
- Made from lightweight aluminum
- easy handling
- similar to L-200-2
| Size | ØD | ØD1 | ØD2 | L | L1 | L2 | L3 | SW | M |
|---|---|---|---|---|---|---|---|---|---|
| 2-3 | 10 | 6 | 6 | 62 82 |
35 65 |
8 | 12 | 8 | M5 |
MS10/36 Clamping arm adapter - for Toggle clamps
MS10/36 Spannarmadapter für Handspanner
- Made from lightweight aluminum
- Use with length and height adapters
- Flexible adjustment of the clamping points
- Drilled and tapped for clamping schrews
- supplied with several holes for asymmetric clamping
- Werkstoff : Aluminium
- similar to L-200-3
| Größe | B | B1 | B2 | B3 | B4 | B5 | øD | L | L1 | L2 | L4 | L5 | L6 | M |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 10 | 6 | 20 | 8 | 12 | 92 | 6 | 60 | 51 | 32 | 15 | 15 | 10 | M5 |
