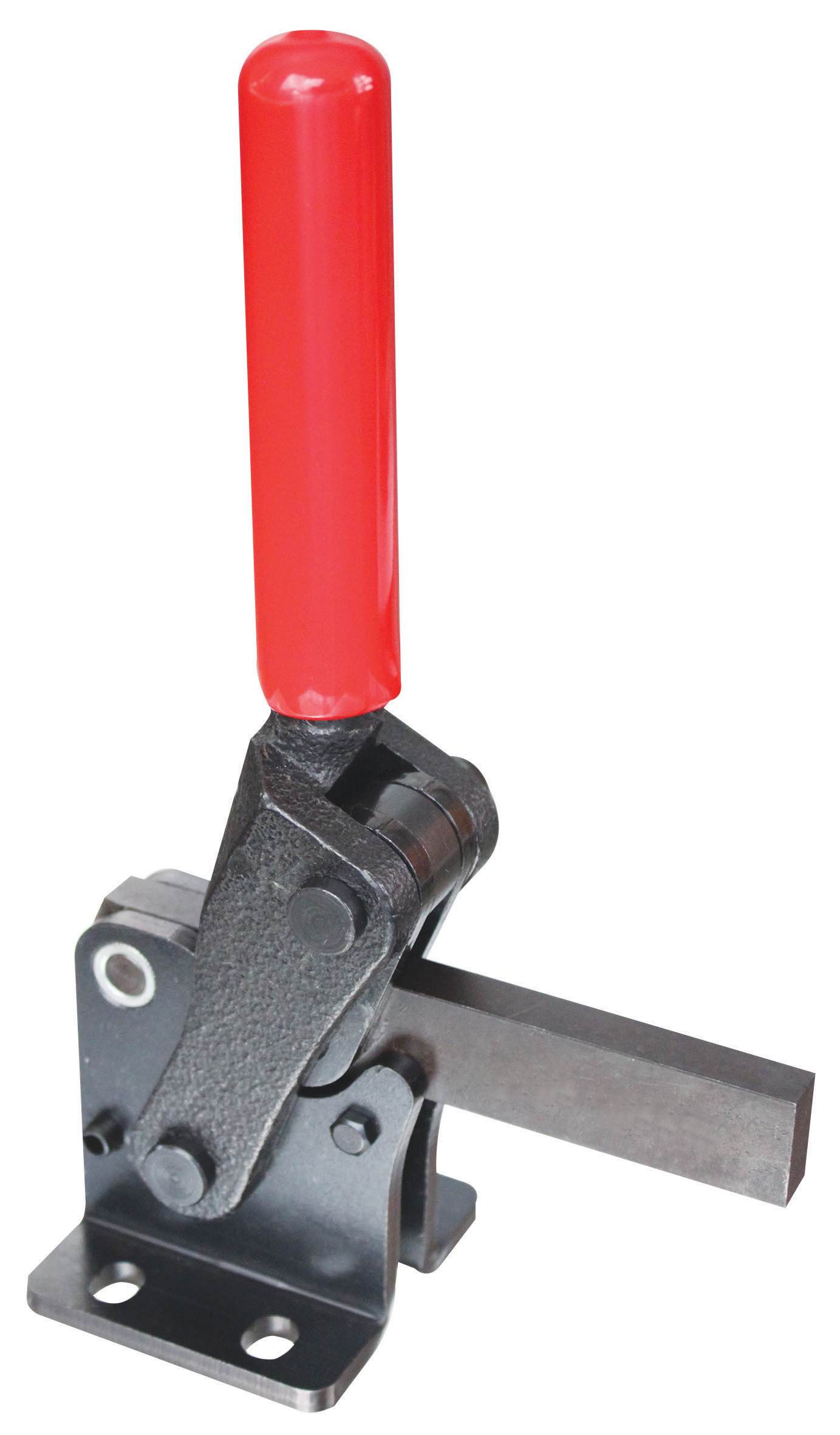

M33 Heavy Vertical toggle clamp with horizontal base
M33 Heavy Vertical toggle clamp with horizontal base
- Heavy duty type with horizontal base
- Material : quality steel, burnished
- Lever arm : cast steel, burnished
- Rivets of stainless steel
- Hinge pins and hinge bushes are case-hardened, reamed and ground
- All moving parts, joints and pins are permanent-lubricated and hardened
- Clamp nuts on lever arm to vary friction in movement.
- Oil-resistant high quality plastic red handle
- supplied complete with tempered, galvanized clamping screw

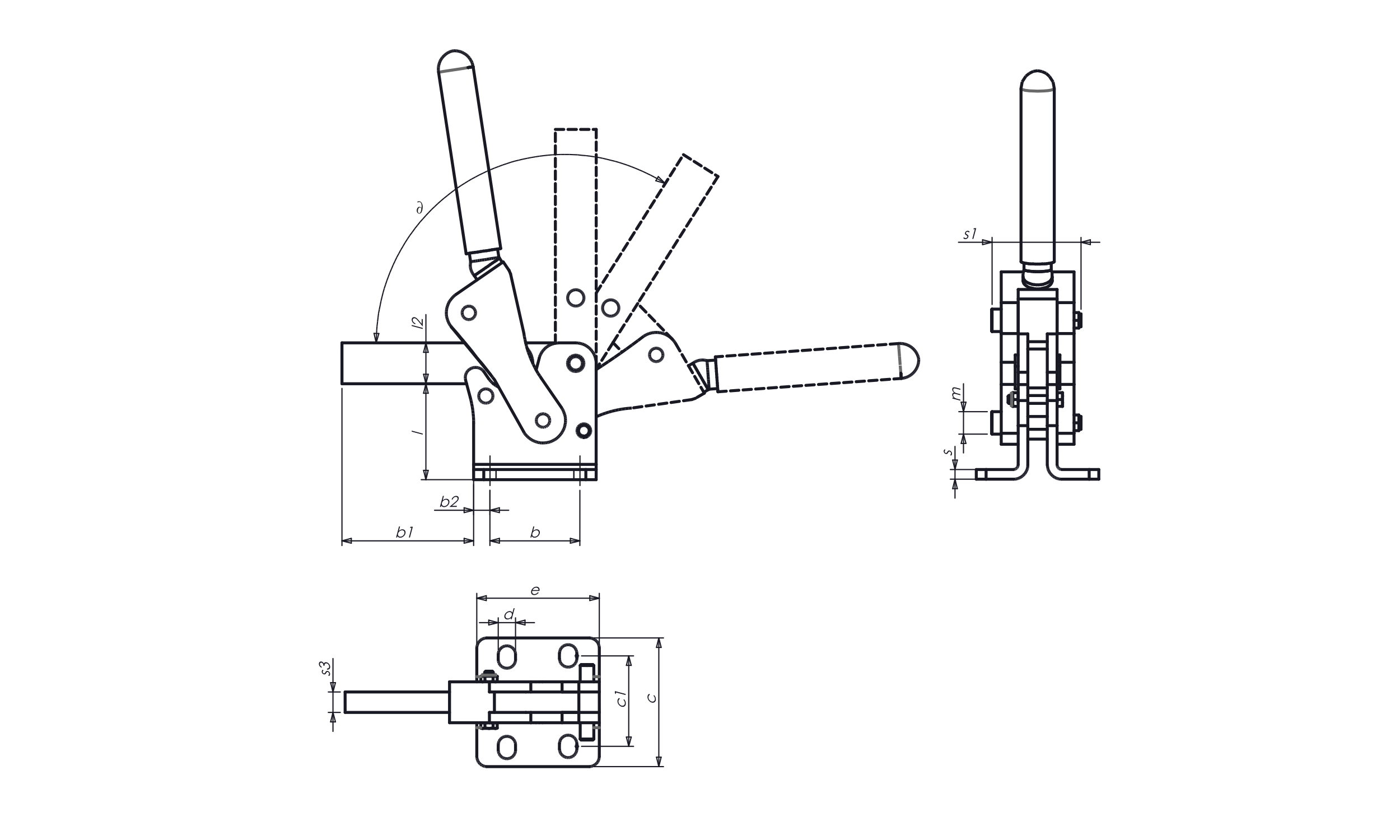

- CAD-files easy and quick to download (see dimension table) !
| Size | F1 ⇧ [kN] | Total height | Total length | Clamping screw | Weight [g] | Price [EUR] | Order- No. |
|---|---|---|---|---|---|---|---|
| 2 | 2,5 | 127 | 85 | M6 x 50 | 320 | 75,90 | M33-2 |
| 4 | 7,0 | 218 | 148 | M12 x 80 | 1240 | 93,50 | M33-4 |
| 6 | 10,0 | 265 | 182 | M12 x 110 | 2080 | 109,50 | M33-6 |
