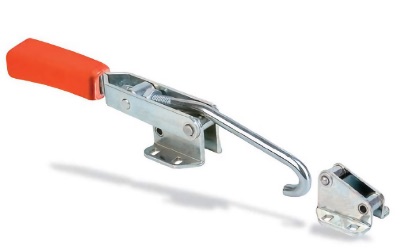

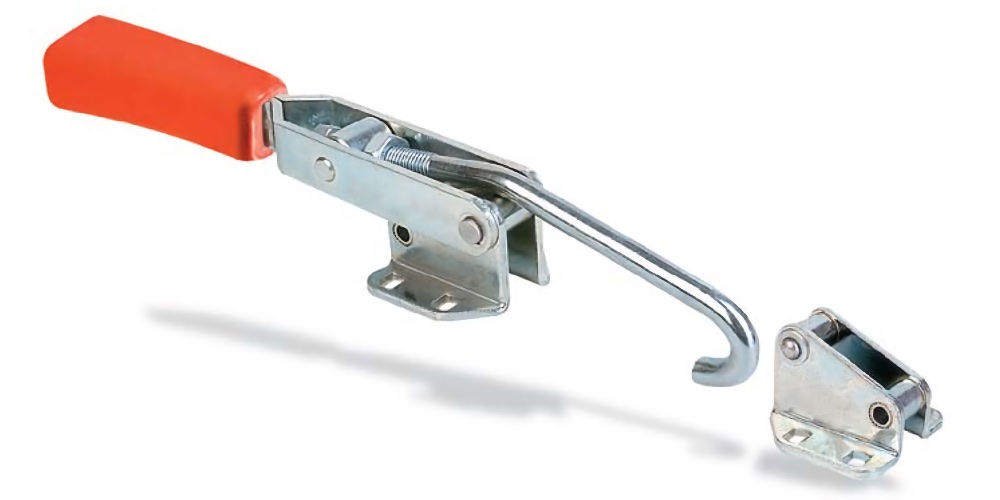

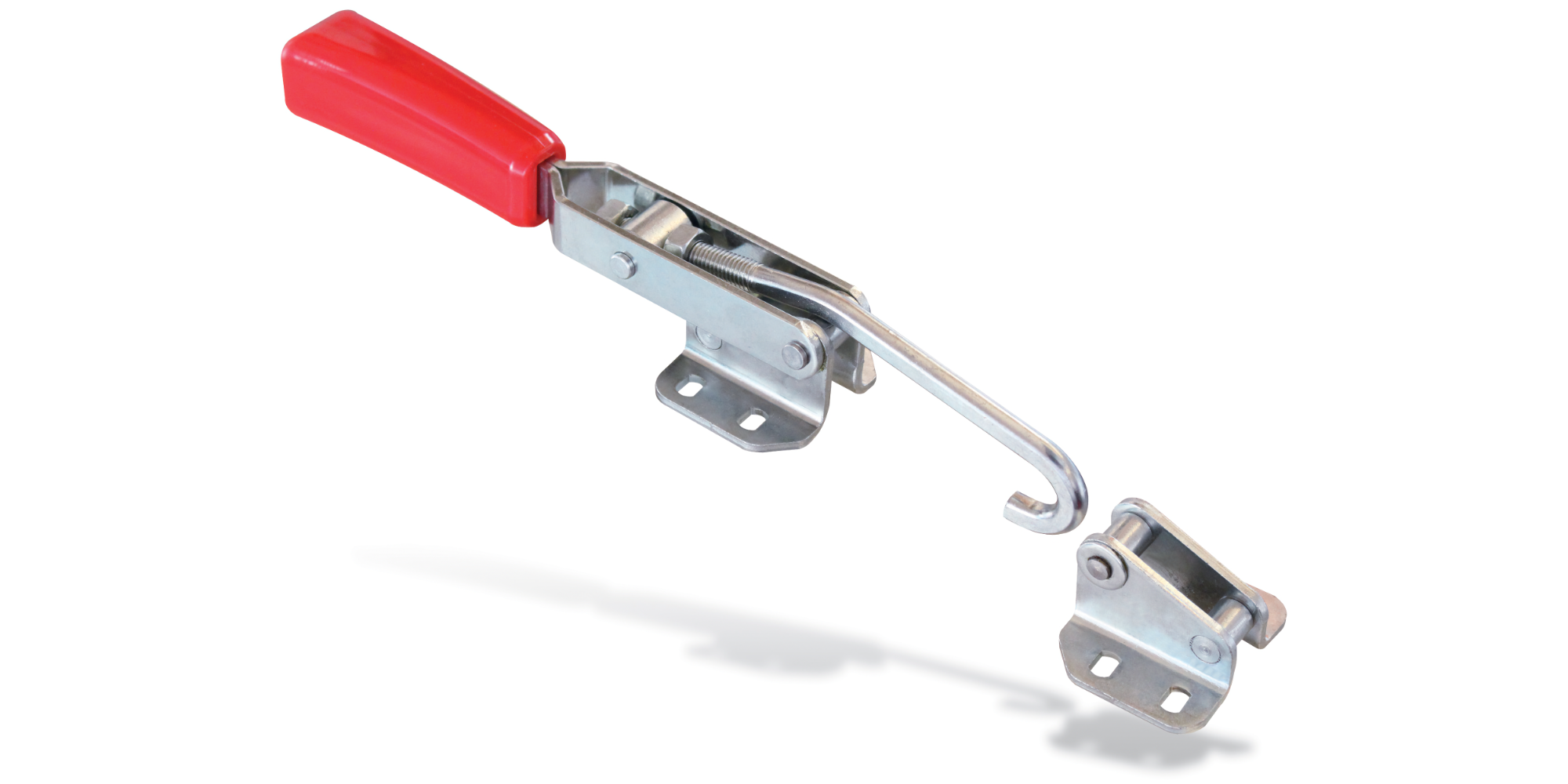

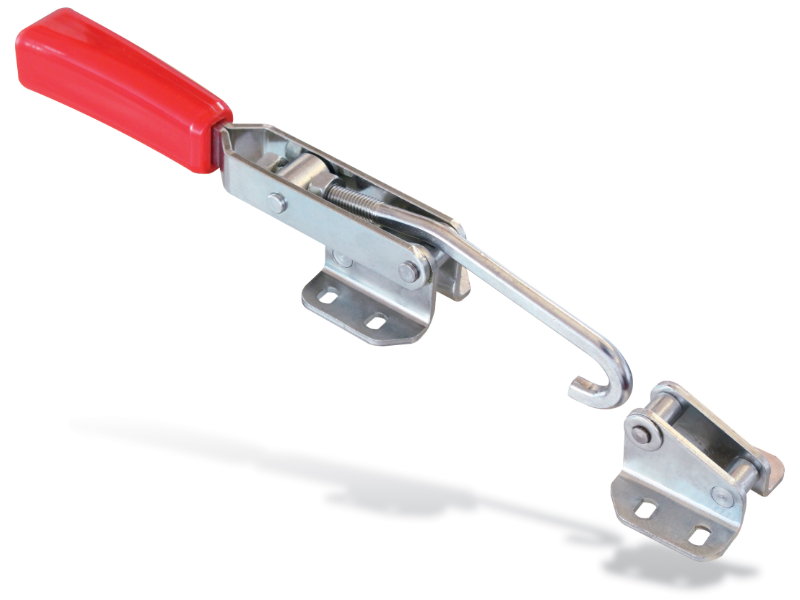

M46 Hook-Type Toggle Clamp with J-Hook and Counter Catch
Horizontal Hook-Type Toggle Clamp in Steel and Stainless Steel – with Optional Safety Latch
The M46 series horizontal hook-type toggle clamp is a robust clamp with a horizontal base and J-hook, designed for securely and quickly clamping, fixing and closing workpieces and fixtures. Its compact design and reliable clamping mechanism make it suitable for a wide range of applications in machine building, fixture construction and industrial manufacturing.
- High-quality galvanized and passivated steel (M46 series)
- Stainless steel version for increased corrosion resistance (M46P series)

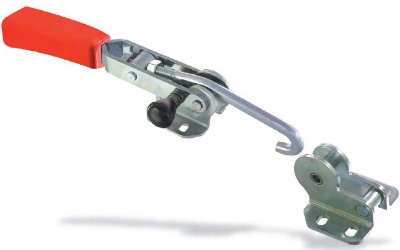

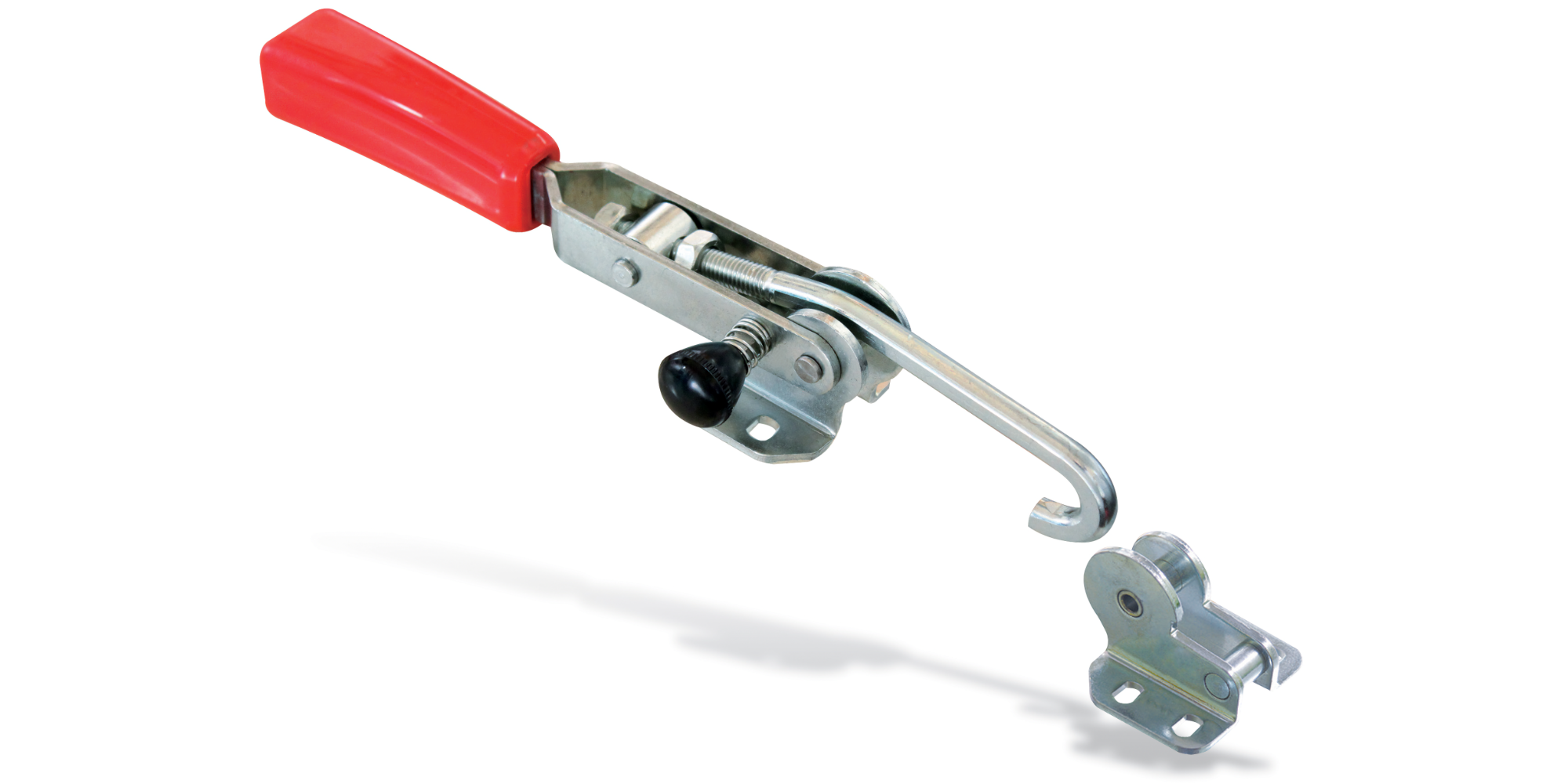

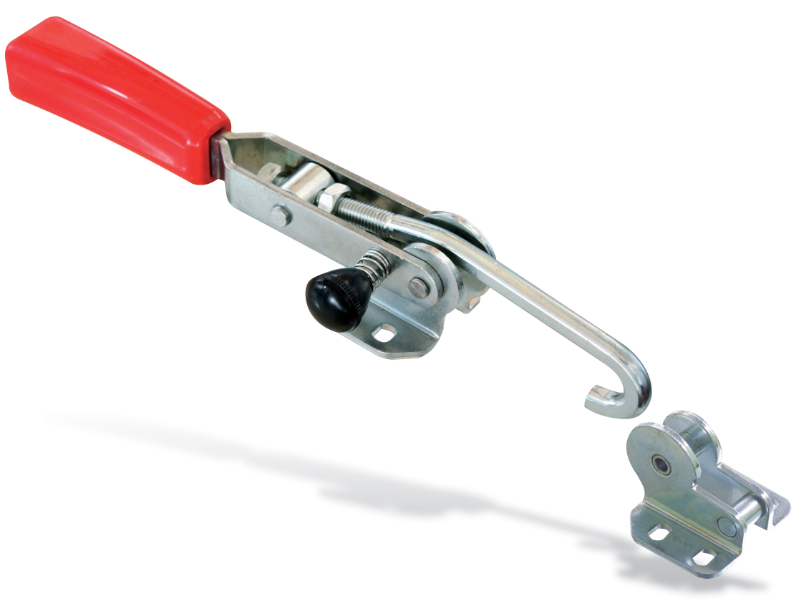

- Optional additional safety latch (M46S series)
- Stainless steel versions for additional sizes available on request
- Stainless steel rivets in case-hardened bushings
- Heat-treated J-hook and clamping sleeve
- Mechanism with a preventive safety function to improve operator safety
- Greased bearings and pivot points for smooth operation
- Oil-resistant red soft-grip handle, robust and ergonomically designed
- Supplied complete with J-hook and counter catch
- Also suitable as an alternative to models such as 6847, etc.
- CAD files are available for free download below.
Product Variants & Order Numbers
| Size | F1 ⬅︎ [kN] | Order Numbers | Price from [EUR] | ||||
|---|---|---|---|---|---|---|---|
| Steel | Stainless steel | Safety latch | Steel | Stainless steel | Safety latch | ||
| 1 | 2.0 | M46-1 | – | M46S-1 | 12.60 € | – | On request |
| 3 | 3.0 | M46-3 | M46P-3 | M46S-3 | 16.90 € | On request | 22.90 € |
| 5 | 5.0 | M46-5 | – | M46S-5 | 29.90 € | – | On request |

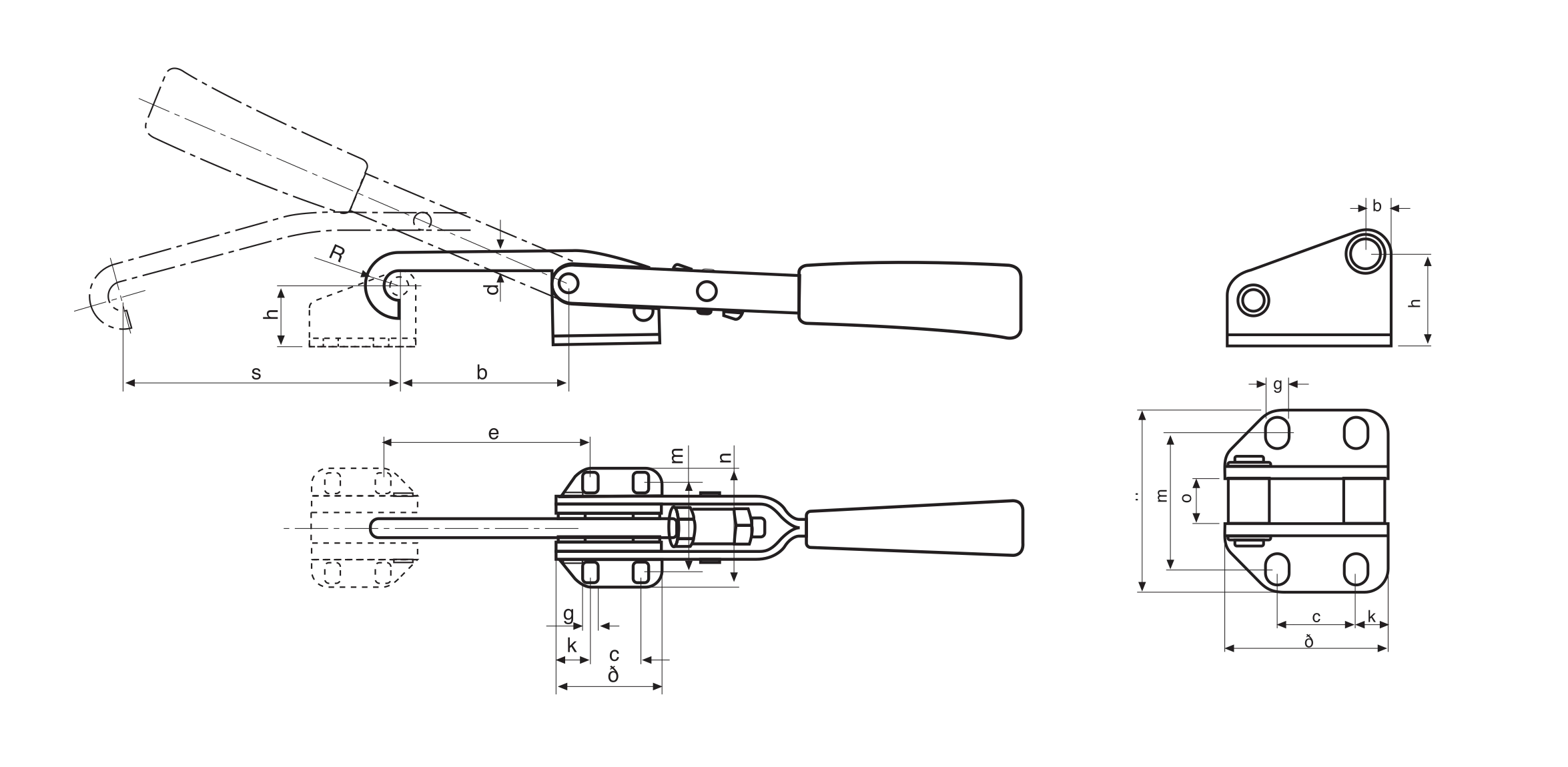

Technical Drawing and Dimensions [mm]
| Order number | Size | b | c | d | e | g | h | H | k | l | L | m | n | r | s | Adjustment range | Weight [g] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M46-1 | 1 | 45 | 4.5 | 6 | 28 - 30 | 33 | 6.5 | 33 | 24 | 4.5 | 130 | 36.5 - 41.5 | 43 | 19 | 36 - 41 | 5 | 185 |
| M46-3 | 3 | 98 | 5.5 | 8 | 32 - 35 | 41 | 13 | 36 | 24 | 5.5 | 230 | 74.5 - 86.5 | 49.5 | 19 | 67 - 79 | 12 | 410 |
| M46-5 | 5 | 144 | 8 | 12 | 56 - 61 | 55 | 13 | 70 | 49 | 11 | 310 | 58.5 - 70.5 | 85 | 30 | 58 - 70 | 12 | 1240 |
MS46S/3 J-Hook and Pull Bar
J-Hook, Pull Bar
- High-quality galvanized, passivated and hardened steel
- Optionally available in stainless steel
- Suitable for M46 series hook-type toggle clamps
| Size | M | L1 | L |
|---|---|---|---|
| 1 | M6 | 30 | 86 |
| 3 | M8 | 50 | 142 |
| 3-1 | M8 | 50 | 170 |
| 5 | M12 | 107 | 186 |
MS46/1 Counter Catch
Counter Catch, Counter Support
- High-quality galvanized and passivated steel
- Case-hardened bushings
- Stainless steel rivets
- Optionally available in stainless steel
- Suitable for M46 series hook-type toggle clamps
| Order number | b | c | d | e | g | h | k | l | m | n | r | s |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MS46/1 | 45 | 4.5 | 6 | 28 - 30 | 33 | 6.5 | 24 | 4.5 | 36.5 - 41.5 | 43 | 19 | 36 - 41 |
| MS46/3 | 98 | 5.5 | 8 | 32 - 35 | 41 | 13 | 24 | 5.5 | 74.5 - 86.5 | 49.5 | 19 | 67 - 79 |
| MS46/5 | 144 | 8 | 12 | 56 - 61 | 55 | 13 | 49 | 11 | 58.5 - 70.5 | 85 | 30 | 58 - 70 |
