DST-431 Latch type toggle clamp with horizontal U-hook 3180N

DST-431 Latch type toggle clamp with horizontal U-hook 3180N

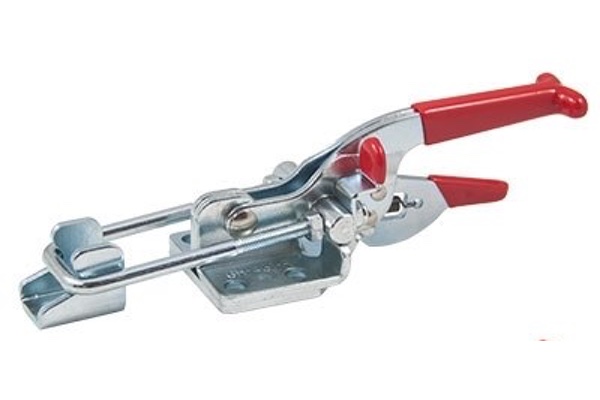

DST-431-R Horizontal Latch type Toggle Clamp with safety lock

Horizontal Latch type toggle Clamp with U-hook :

Pull action latch clamp
Horizontal mounting base, horizontal U-hook
Holding capacity : 3180N
supplied with U-hook and latch plate
Easy adjustable U-hook (within its range)
Optional U-hook lengths available (M5x150mm, M6x87mm, M6x98mm, M6x100mm, M6x114mm)
Weight : 225g

Note :

Material: galvanic, zinc-plated high quality steel
available in stainless steel (DST-431-SS)
Also available with safety lock (DST-431-R)
Hand grips designed for high user comfort
e.g. suitable for 331, 331-R, GN 851-320-T2, CH-431, GH-431 etc...
Short delivery !

Product Datasheet (Download)

Modell-Nr.	DST-431	DST-431-R	GH-431-R
Holding Capacity (N)	3180 N	3180 N	3180 N
Weight (g)	225 g	225 g	225 g
adjustment stroke (mm)	21.6 mm	21.6 mm	21.6 mm
clamping stroke (mm)	45 mm	45 mm	45 mm
Price (EUR)	on request	on request	on request
CAD

DST-431 Datasheet Latch type toggle clamp with horizontal U-hook 3180N

DST-431-R Datasheet Latch type toggle clamp with security latch U-hook 3180N

Order-No. with 114mm U-hook (M6x114mm) : DST-431-R-T005

GH-431-R Datasheet Latch type toggle clamp with security latch U-hook 3180N
