Clamps with flat-faced ball

Clamps with flat-faced ball, similar to DIN 6314

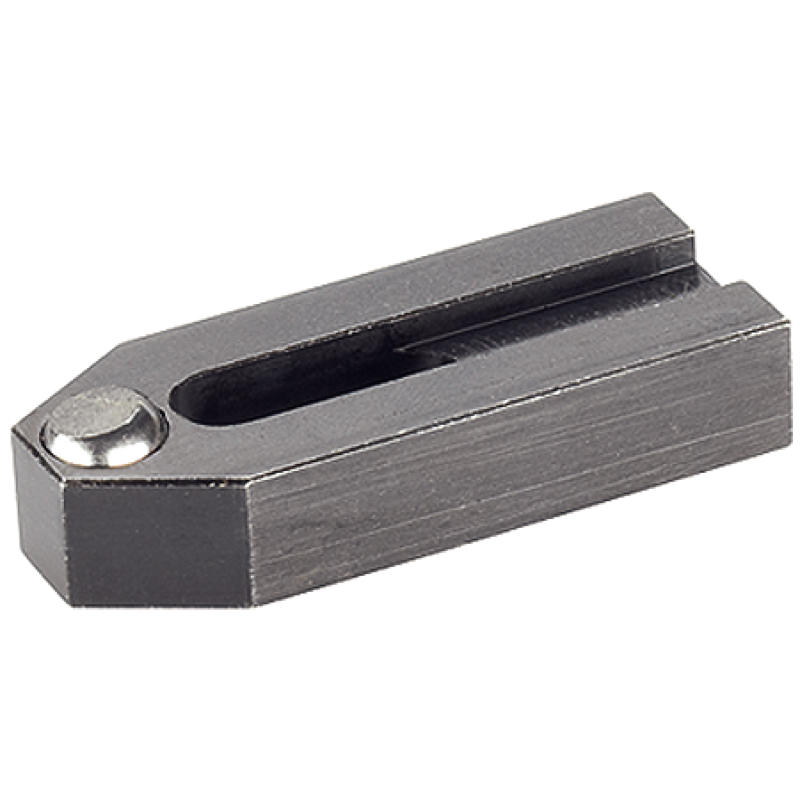

Product image :
Clamps with flat-faced ball, similar to DIN 6314

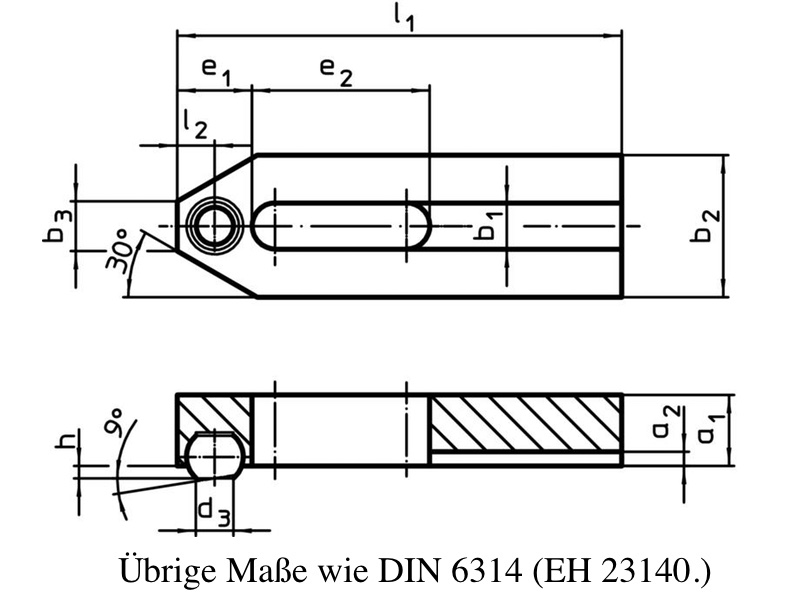

Drawings :
Drawings Clamps with flat-faced ball, similar to DIN 6314

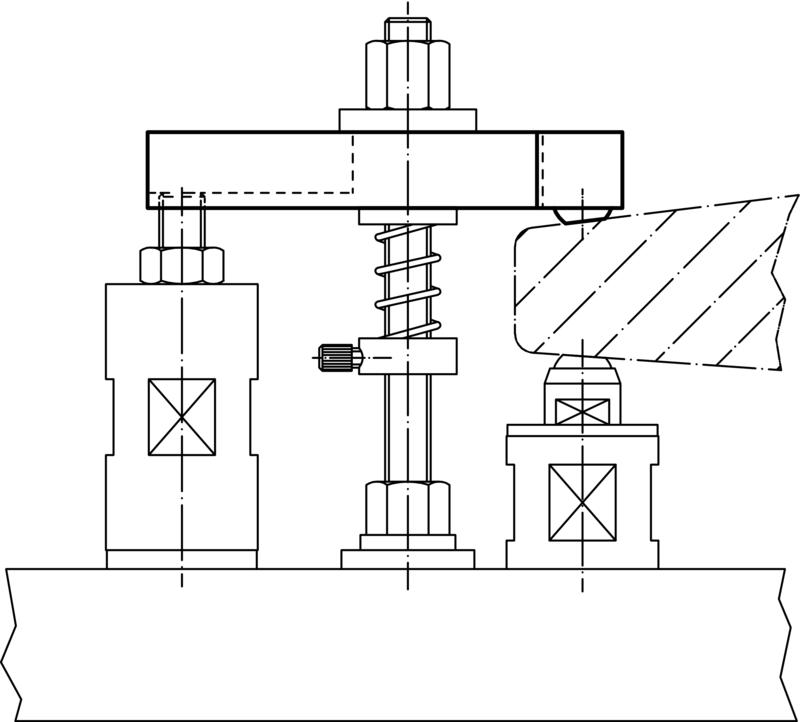

Assembly examples :
Assembly examples Clamps with flat-faced ball
Material :
Ball : Ball-bearing steel, hardened, bright
Clamp : Heat-treated steel, blackened

Notes :
Ball protected against rotating.





Orderingtable :

Nominal dimensionsDimensionsWeightArt. Nr.Price
b1l1d3a1a2b2b3e1e2hl2Kugel ø
[mm][mm][g]
6,6 50 5,8 10 2,5 20 8 10 20 1,6 5,0 8,5 61 23180.0007 o. R.
9,0 60 7,2 12 3,0 25 10 13 22 2,0 6,5 10,0 109 23180.0009 o. R.
11,0 80 8,6 15 3,5 30 12 15 30 2,7 7,5 12,0 219 23180.0011 o. R.
13,0 125 10,5 – 4,0 – – – – 3,5 10,5 16,0 615 23180.0014 o. R.
