Hook type toggle Clamp with narrow and slim base/foot :
- Galvanized and zinc-plated quality steel
- narrow/slim base for cylindrical mounting surfaces
- Rivets of stainless steel and hardened bushings
- Easy adjustable tempered J-hook (within its range) and clamping sleeve
- Bearings and bushings are greased/pre-lubricated
- Oil resistant, ergonomic red handles
- Complete with hook
- Optional J-hook lengths available
- Also available in stainless steel (M46KP) and with safety latch (M46KS)
- similar to 6847K, 6847KNI, etc.
- CAD-files are available to download (see below specification table) !
Product Datasheet (Download)
| Size | F1
⬅︎
(kN) | adjustable range
J-hook
[mm] | Total
height
[mm| | Total
length
[mm| | Weight
[g] | CAD | Price
[EUR] | Order-No. |
|---|
| 3 |
3.0 |
12 |
36 |
230 |
375 |
|
16,90 |
M46K-3 |
MS46S/3 J-Hook
- Galvanized, passivated and hardened
- Also available in stainless steel
- suitable for hook clamp M46 and M46S !
| Size | M | L1 | L |
|---|
| 1 |
M6 |
30 |
86 |
| 3 |
M8 |
50 |
142 |
| 3-1 |
M8 |
50 |
170 |
| 5 |
M12 |
107 |
186 |

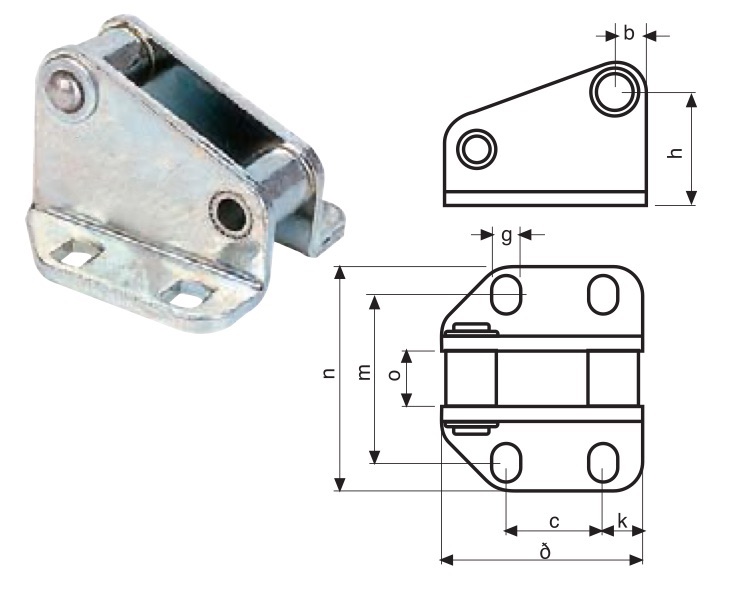

MS46/1 Counter catch
- Galvanized and passivated
- hardened bushings
- Rivets of stainless steel
- Also available in stainless steel
- suitable for hook clamp M46 and M46S !
| Sie | b | c | h | g | k | l | m | n | o |
|---|
| 1 |
6 |
19 |
22.5 |
4.5 |
6 |
31 |
28 |
41 |
6.8 |
| 3 |
6 |
19 |
23 |
5.5 |
13 |
31 |
32-35 |
46 |
10.8 |
| 5 |
12 |
29 |
49 |
11 |
13 |
31 |
60 |
89 |
13.7 |
