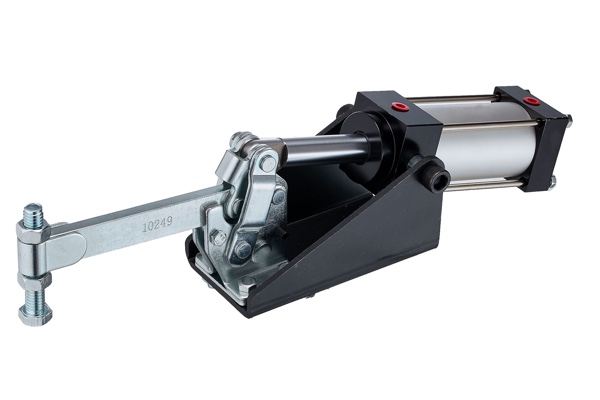

DST-10249-A Horizontal Pneumatic toggle clamp 4500N
Product Specifications :
- double acting, horizontal attached pneumatic cylinder
- Pneumatic version of manual toggle clamp DST-10249
- Lever parts and clamping spindle : galvanic, zinc-plated high quality steel
- optional magnetic piston for end position monitoring/sensoring
- optional Proximity sensors available
- e.g. suitable for 847-S etc....
- CAD-files and prices on Request!
| Modell-Nr. | DST-10249-A |
|---|---|
| Clamp arm type | solid bar |
| Holding Capacity | 4500N |
| Weight | 3640g |
| Cylinder Bore | 50 mm |
| Cylinder Area | 19,63 cm2 |
| Bar Opens | 95° |
| max. cylinder air pressure | 10 bar |
| Port Size | G 1/8 |
| Price | on request |
