DST-225-DSM Horizontal acting toggle clamp 2270N

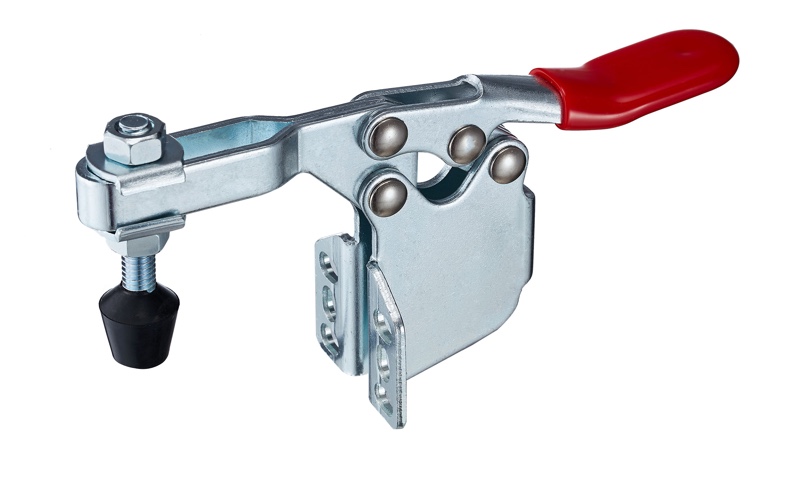

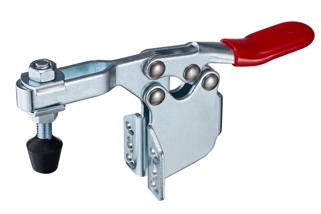

DST-225-DSM Horizontal acting toggle clamp with angle profile base 2270N

DST-225-DSM Horizontal acting toggle clamp with angle profile base 2270N

Horizontal acting toggle clamp with angle base :

  • Low profile series
  • angle profile base
  • Adjustable U-Bar
  • Bar Opens : 90°
  • Handle Opens : 65°
  • with clamping screw, washer and nut element
  • Holding Capacity : 2270N
  • Weight : 315g
  • Material: galvanic, zinc-plated high quality steel
  • corrosion-resistant
  • Hand grips designed for high user comfort
  • CAD-file and Price on request !
Modell-Nr.DST-225-DSM
Holding Capacity (N) 2270 N
Weight (g) 315 g
Bar Opens 90°
Handle Opens 65°
Spindle supplied FC-56212
Price (EUR) on request

DST-225-DSM Datasheet Horizontal acting toggle clamp with angle profile base 2270N
