M11 Vertical toggle clamp with vertical base and open clamping arm

M11 Vertical toggle clamp with vertical base

Galvanized and zinc-plated quality steel
optional also available in stainless steel, suitable for use in food and pharmaceutical processing industry (Article No : 11P)
Rivets of stainless steel and hardened bushings
Bearings and bushings are greased/pre-lubricated
Oil resistant, ergonomic red handles
sizes 3 and 4 are optional available with safety latch
Safety mechanism with finger protection and for higher operator security (Article No : 11S)
Hardened and galvanized, quick adjustable clamping screws are provided by a retrainer
e.g. suitable for 6800 etc...
Oil- and heat resistant rubbcer cap

Note :

Size	F1 ⇧ [kN]	F2 ⇧ [kN]	Total height	Total length	Clamping screw	Weight [g]	Price [EUR]	Order- No.
1	0.8	1.1	117	60	M5 x 30	120	10,90	M11-1
2	0.8	1.2	153	76	M6 x 35	190	14,30	M11-2
3	1.8	2.5	210	105	M8 x 45	442	15,85	M11-3
4	2.0	3.0	255	140	M8 x 65	738	22,90	M11-4
5	3.0	5.0	323	190	M12 x 80	1500	32,50	M11-5
6	3.5	5.5	335	230	M12 x 110	2179	48,20	M11-6
⬇︎ ⬇︎ version with safety latch - M11S ⬇︎ ⬇︎
3	1.8	2.5	210	105	M8 x 45	525	o. R.	M11S-3
4	2.0	3.0	255	140	M8 x 65	795	o. R.	M11S-4

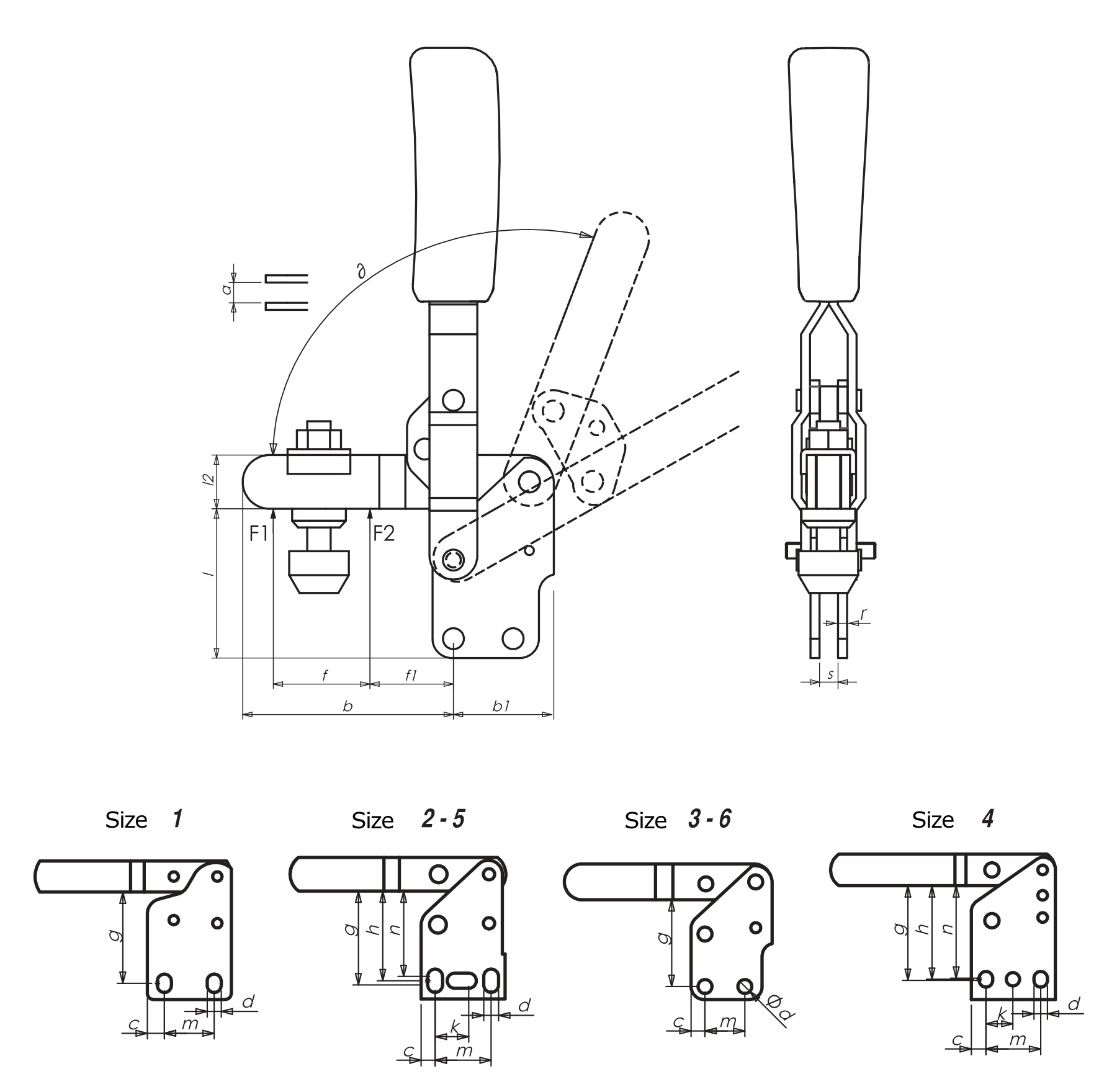

Size	a	b	b1	c	d	f	f1	g	h	k	l	l1	m	n	r	s	∂	Order-No.
1	5.5	41	21	5.5	4.5	19	14	27	-	-	31	10	16	-	2.5	5	88°	M11-1
2	6.2	51	24	5	5.3	24	10	33	31.5	12	38	12	20	30	2.5	5	100°	M11-2
3	8.5	72	31	7.5	7	29	27	44	-	-	50	18	20	-	3	6	105°	M11-3
4	9	101	44	9.25	8.5	61	30	60	59	17	71.5	20	34.5	56.5	3.5	8	105°	M11-4
5	14	137	56	10.5	8.5	88	40	68	67	25	78	25	45	65.5	5	10	115°	M11-5
6	14	167	61	12.5	10.5	90	55	88.5	-	-	106	30	50	-	6	10	115°	M11-6

Size	M	D	H	Gewicht [g]
0	M4	11	8.5	1
1	M5	12	9	1
2	M6	15	11.5	2
3	M8	19	14	4
4	M10	24	17	6
5	M12	25	20	8

Size	B	B1	B2	B3	B4	ØD	ØD1	ØD2	L	L1	L2	L3	L4	M
2	12	6.5	9	12	2x45°	5.5	10	6	95	70	15	48	6	M5
3	15	9	12	15	2x45°	5.5	10	6	95	70	15	48	6	M5

Size	ØD	ØD1	ØD2	L	L1	L2	L3	SW	M
2-3	10	6	6	62 82	35 65	8	12	8	M5

Größe	B	B1	B2	B3	B4	B5	øD	L	L1	L2	L4	L5	L6	M
2	10	6	20	8	12	92	6	60	51	32	15	15	10	M5
