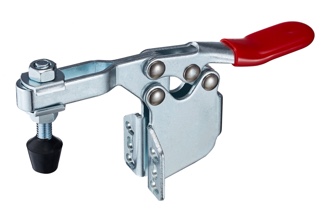

Horizontal acting toggle clamps with angle mounting base
Horizontal acting toggle clamps with horizontal mounting base :
- Holding capacity 980N up to 2230N
- adjustable U-bar
- Straight handle
- Bar opens 85° - 90°
- Handle opens 60° - 65°
- with clamping screw, washer and nut element
- Item group 112.200
- Material: galvanized, forged quality steel
- ergonomical plastic handle
- CAD-Data and prices on request !
Note :

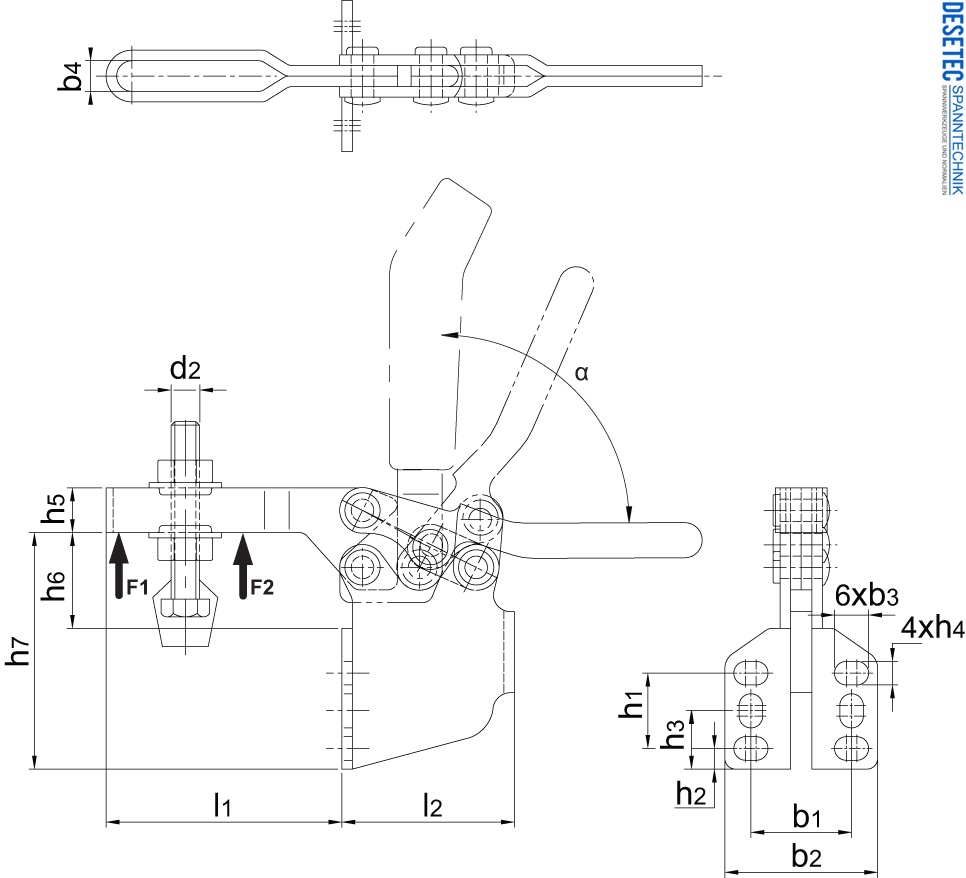

| Art.-Nr. | b1 | h1 | b3 | h4 | b2 | b4 | h2 | h3 | h5 | h6 | h7 | l1 | l2 | α1 | F(N) | d2 | Weight (g) | Price |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 112.200 (201-BSM) |
22 | 20.4 | 8.2 | 5.2 | 36 | 7.4 | 6.1 | 16.3 | 12.7 | 17.2 | 62.2 | 53.25 | 44 | 85° | 980 | M6x44 | 163 | on request |
| 112.201 (225-DSM) |
28.6 | 21.4 | 9.7 | 6.7 | 43.4 | 8.7 | 5.85 | 16.55 | 12.7 | 27.2 | 67.2 | 67 | 49 | 90° | 2230 | M8x63 | 315 | on request |
