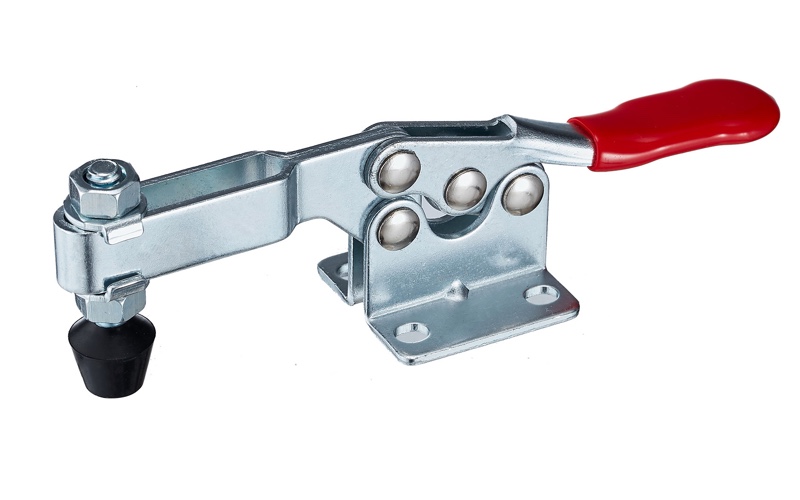

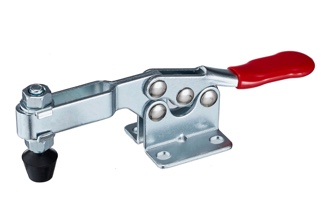

Horizontal acting toggle clamp with horizontal mounting base :
- Low profile series
- Adjustable clamping U-Bar
- Bar Opens : 85°
- Handle Opens : 60°
- with clamping screw, washer and nut element
- Holding Capacity : 900N
- Weight : 130g
- Material: galvanic, zinc-plated high quality steel
- corrosion-resistant
- Hand grips designed for high user comfort
- Also available in Stainless Steel (DST-201-BSS)
- e.g. suitable for 215-U, etc.
- CAD-file and Price on request !
Product Datasheet (Download)
| Modell-Nr. | DST-201-B |
|---|
| Holding Capacity (N) |
900 N |
| Weight (g) |
130 g |
| Bar Opens |
85° |
| Handle Opens |
60° |
| Spindle supplied |
FC-14134 |
| Price (EUR) |
on request |
