This series is available in 7 types :

Modell-Nr.	Holding Capaciy (N)	Weight (g)	Clamp Arm Lenght (mm)	Height under Clamp Arm (mm)	Bar Opens	Handle Opens	Material
DST-20752-B	750	88	37	19	94°	76°	Steel
DST-20752-BSS	750	88	37	19	94°	76°	Stainless Steel
DST-21502-B	1500	200	61.8	25	94°	76°	Steel
DST-21502-BSS	1500	200	61.8	25	94°	76°	Stainless Steel
DST-22502-B	2500	430	79	34	94°	76°	Steel
DST-23502-B	3500	872	108	45	94°	76°	Steel
DST-24502-B	4500	1400	128	59	94°	76°	Steel

- Holding capacity 750 N -

DST-20752-B Horizontal acting toggle clamp with horizontal mounting base 750N

- Bar opens 94°
- Handle opens 76°
- Weight : 88 gr
DST-20752-B

- Holding capacity 750 N -

DST-20752-BSS Horizontal acting toggle clamp with horizontal mounting base 750N-STAINLESS STEEL

- STAINLESS STEEL -
- Bar opens 94°
- Handle opens 76°
DST-20752-BSS

- Holding capacity 1500 N -

DST-21502-B Horizontal acting toggle clamp with horizontal mounting base 1500N

- Bar opens 94°
- Handle opens 76°
- Weight : 220 gr
DST-21502-B

- Holding capacity 1500 N -

DST-21502-BSS Horizontal acting toggle clamp with horizontal mounting base 1500N-STAINLESS STEEL

- STAINLESS STEEL -
- Bar opens 94°
- Handle opens 76°
DST-21502-BSS

- Holding capacity 2500 N -

DST-22502-B Horizontal acting toggle clamp with horizontal mounting base 2500N

- Bar opens 94°
- Handle opens 76°
- Weight : 430 gr
DST-22502-B

- Holding capacity 3500 N -

DST-23502-B Horizontal acting toggle clamp with horizontal mounting base 3500N

- Bar opens 94°
- Handle opens 76°
- Weight : 872 gr
DST-23502-B

- Holding capacity 4500 N -

DST-24502-B Horizontal acting toggle clamp with horizontal mounting base 4500N

- Bar opens 94°
- Handle opens 76°
- Weight : 1400 gr
DST-24502-B

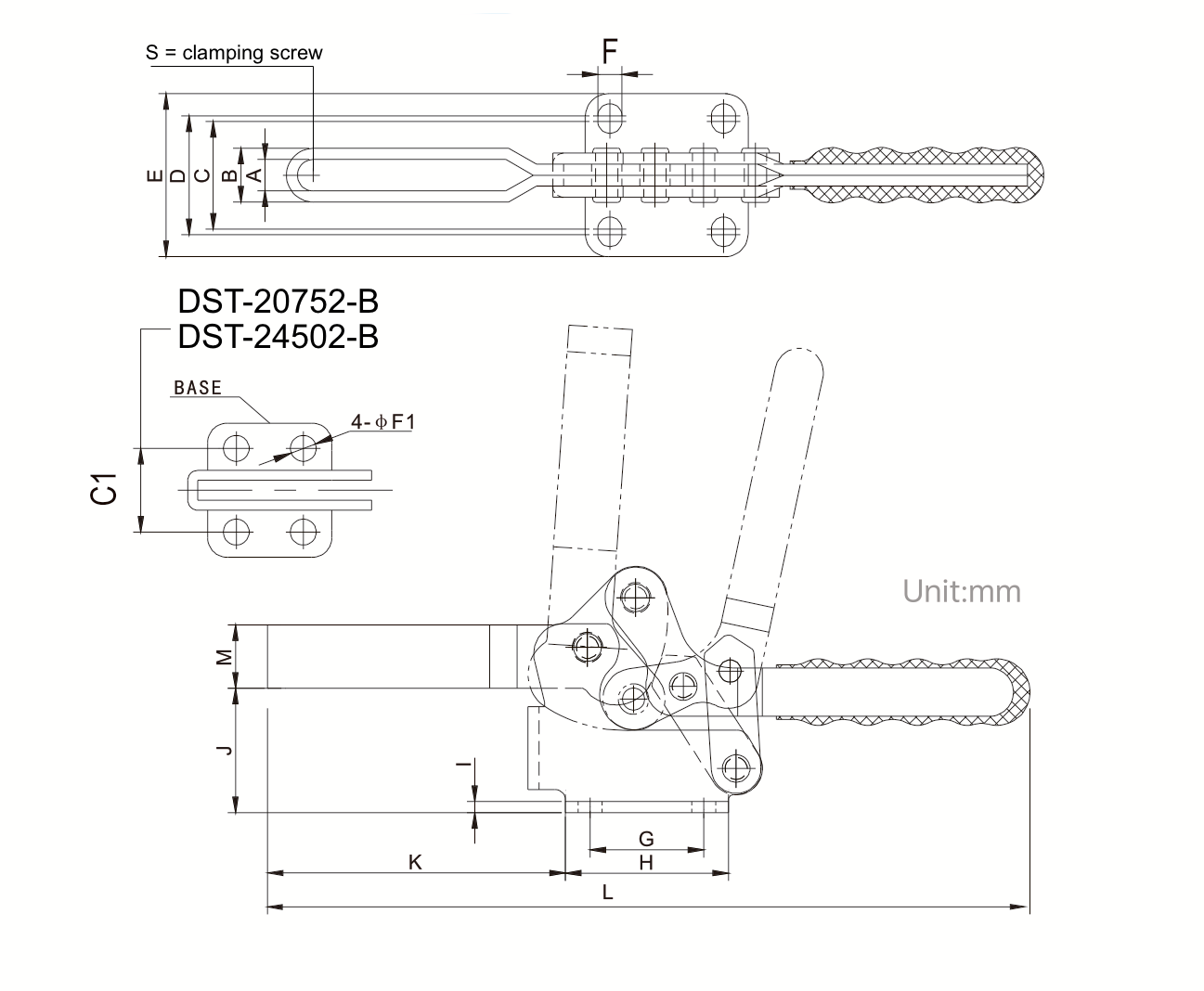

DST-20752-B Technical Drawing Overview

MODELL	DST-20752-B	DST-20752-BSS	DST-21502-B	DST-21502-BSS	DST-22502-B	DST-23502-B	DST-24502-B
Holding capacity (N)	750	750	1500	1500	2500	3500	4500
Weight (g)	88	88	220	220	430	872	1400
Bar Opens	94°	94°	94°	94°	94°	94°	94°
Handle Opens	76°	76°	76°	76°	76°	76°	76°
A	5.8	5.8	6.2	6.2	9	11	13.2
B	9.8	9.8	11,2	11.2	15	19	23.2
C	-	-	22	22	26	39	-
C1	16.8	16.8	-	-	-	-	41.3
D	-	-	28	28	31	42.9	-
E	27	27	40	40	47	59	67
F	-	-	5.5	5.5	6.6	8.7	-
øF1	5.2	5.2	-	-	-	-	8.7
G	13.5	13.5	26	26	26	41.2	41.2
H	25	25	38	38	42	59	66
I	2	2	2.5	2.5	3	4	5
J	19	19	25	25	34	45	59
K	37	37	61.8	61.8	79	108	128
L	116	116	171	171	219	274	303
M	9.5	9.5	14	14	17.5	23	26
S	FC-053008	FC-053008	FC-064010	FC-064010	FC-085012	FC-107515	FC-121017
Price	on request	on request	on request	on request	on request	on request	on request
MODELL	DST-20752-B	DST-20752-BSS	DST-21502-B	DST-21502-BSS	DST-22502-B	DST-23502-B	DST-24502-B
