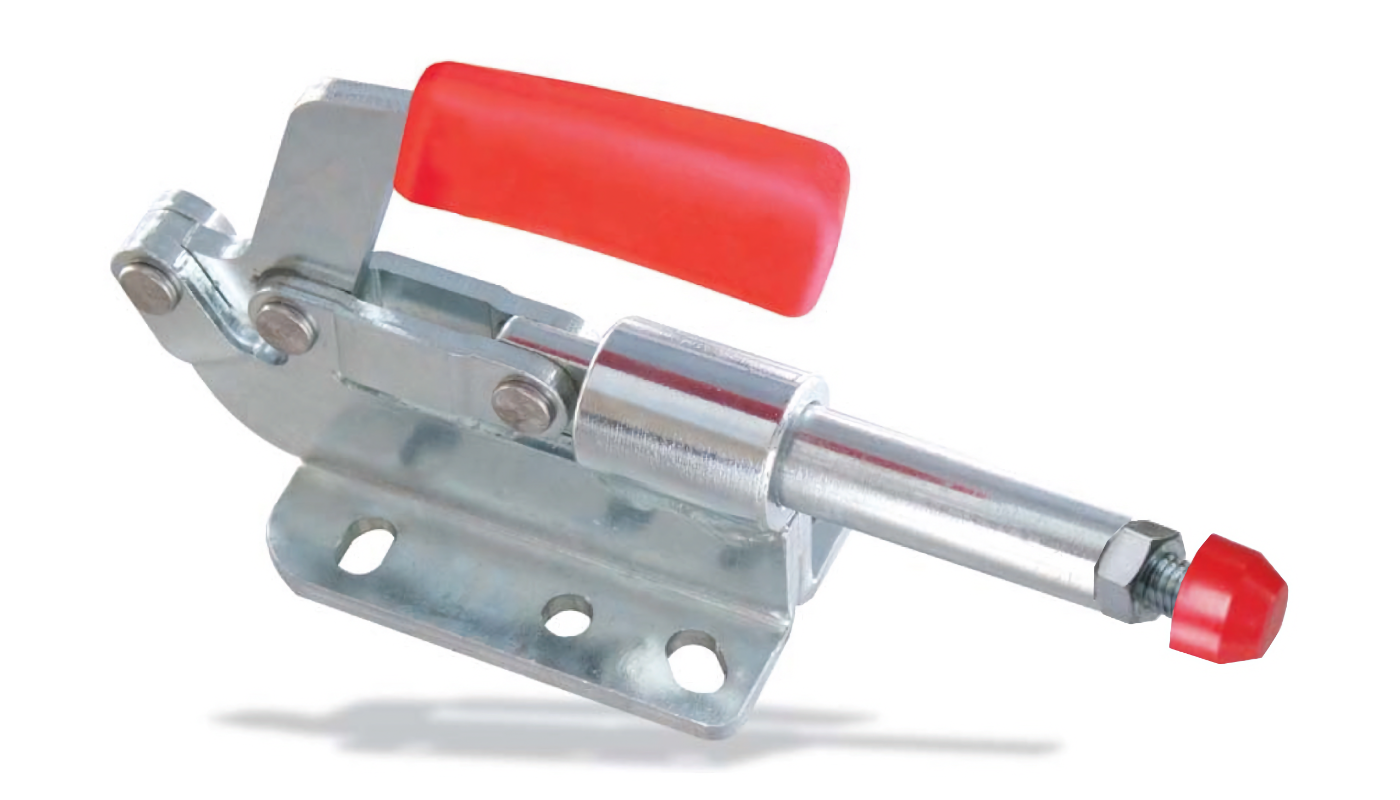

M62 Push-pull type toggle clamp with handle
Specifications :
- For push- and pull-clamping, with flat base
- The clamps lock in open and closed handle positions.
- Equal operation of rod and lever
- Clamping forces 2kN up to 4kN
- Material : Galvanized and zinc-plated quality steel
- Rivets of stainless steel and hardened bushings.
- Bearings and bushings are greased/pre-lubricated.
- Oil resistant, ergonomic red handles designed for high user comfort.
- Complete with tempered, galvanized clamping screw and rubber nose.
- CAD-files on Request !
| Size | F1 ⮕ [kN] | F2 ⬅︎ [kN] | Total height | Total length | Clamping screw | Weight [g] | Price [EUR] | Order-No. |
|---|---|---|---|---|---|---|---|---|
| 3 | 2.0 | 2.0 | 95 | 186 | M8 x 45 | 575 | 27,40 | M62-3 |
| 5 | 4.0 | 4.0 | 115 | 190 | M10 x 40 | 1010 | 35,80 | M62-5 |
