Push-Pull type toggle clamps - phosphated body

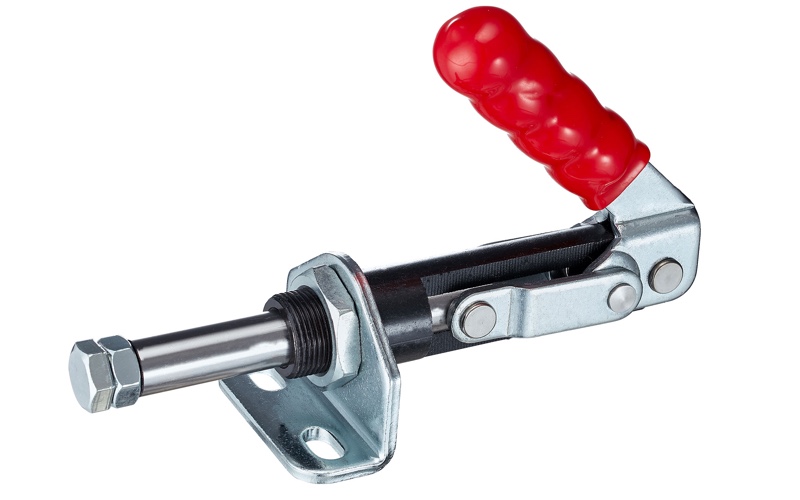

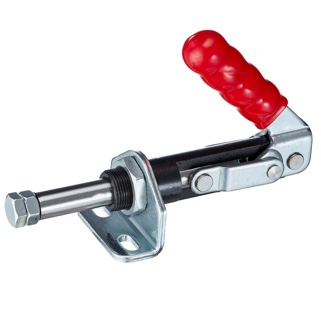

Push-Pull toggle clamp with phosphated body :
- Holding capacity 2500N and 4500N
- phosphated, black finished body
- rod with inner thread The fastening nut supplied allows the clamp to be mounted in any desired position to base.
- available also with inch threads
- Toggle locks in extended and retracted position
- can be used as push but also pull type clamp
- Item Group 113.100

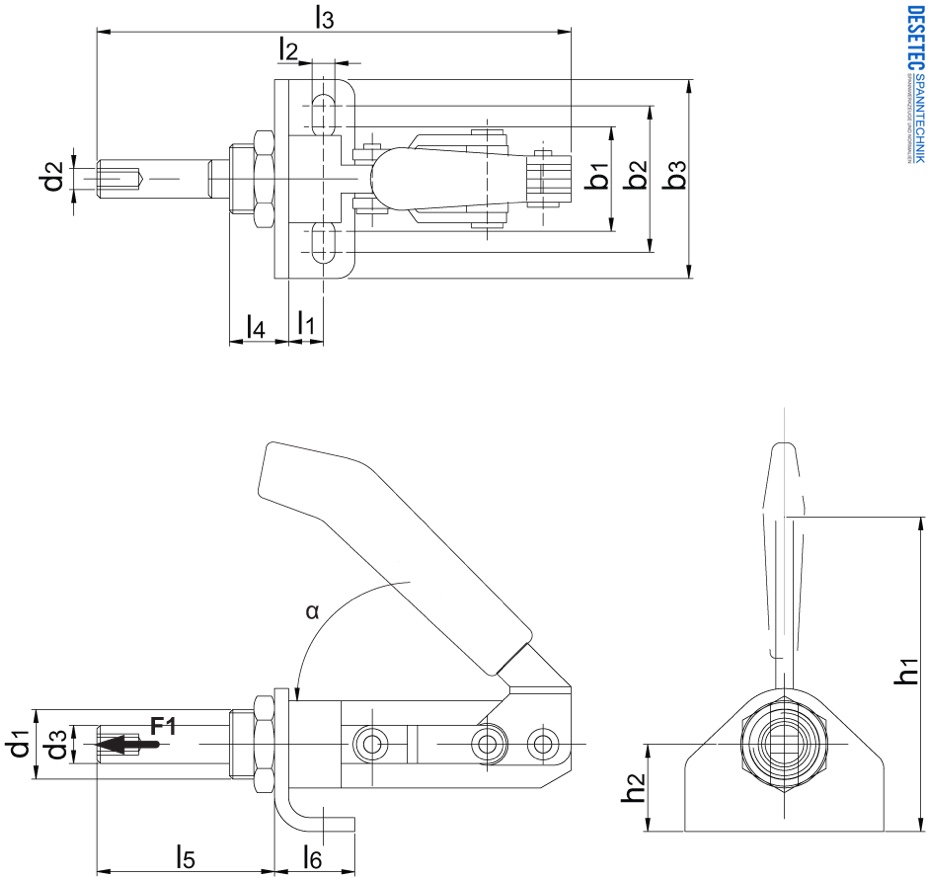

| Art.-Nr. | F [N] | Stroke [mm] | α1 | l1 | b1 | b2 | l2 | b3 | h1 | h2 | l3 | l4 | l5 | l6 | d1 | d3 | d2 | Weight [g] | Price [EUR] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DST-30250 | 2500 | 32 | 190° | 30 | 10 | 42 | 6.5 | 57 | 85 | 25 | 136 | 17 | 51 | 23 | M20x1.5 | 11 | M6x1 | 385 | on request |
| DST-30450 | 4500 | 32 | 180° | 30 | 13 | 45 | 8.5 | 64 | 120 | 30 | 16.55 | 22 | 59.5 | 30 | M24 x 1.5 | 16 | 10x1.5 | 774 | on request |
